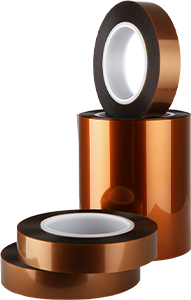

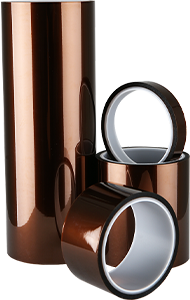

Using Pi films and silicon adhesives, this product demonstrates stable physical properties in processes that require chemical and high temperature tape.
It can be used for various purposes such as masking, soldering, and transformer isolation.
Product features
Superior chemical and high temperature tape
Superior voltage withstanding properties and insulation
Excellent wettability
No residue upon peeling
Single-sided CHJ-206
Single-sided CHJ-206
Double-sided CHJ-925G
Double-sided CHJ-925G
| GRADE NO. | STRUCTURE | MATERIALS | HEAT RESISTANCE (°C/MIN) |
ADHESION (gf/in) |
COLOR | THICKNESS(㎛) | |
|---|---|---|---|---|---|---|---|
| BASE FILM(㎛) | TOTAL(㎛) | ||||||
|
CHJ-205A
|
PI SILICONE |
PI | 200/120 | 550 | DARK AMBER | 25 | 50 |
| CHJ-206 |
PI SILICONE |
PI | 200/120 | 700 | DARK AMBER | 25 | 62 |
| CHJ-205 |
PI SILICONE |
PI | 200/120 | 750 | DARK AMBER | 25 | 70 |
| CHJ-207 |
PI SILICONE |
PI | 200/120 | 550 | DARK AMBER | 25 | 55 |
| CHJ-590ESD |
PI SILICONE FLUORO LINER |
PI | 200/120 | 850 | DARK AMBER | 50 | 90 |
| GRADE NO. | STRUCTURE | MATERIALS | HEAT RESISTANCE (°C/MIN) |
ADHESION (gf/in) |
COLOR | THICKNESS(㎛) | |
|---|---|---|---|---|---|---|---|
| BASE FILM(㎛) | TOTAL(㎛) | ||||||
| CHJ-925G |
SILICONE PI SILICONE FLUORO LINER |
PI | 200/120 | TOP: 300 BOTTOM: 300 |
DARK AMBER | 25 | 95 |
| CHJ-925K |
SILICONE PI SILICONE FLUORO LINER |
PI | 200/120 | TOP: 500 BOTTOM: 500 |
DARK AMBER | 25 | 75 |
| CHJ-925F |
SILICONE PI SILICONE FLUORO LINER |
PI | 200/120 | TOP: 1000 BOTTOM: 160 |
DARK AMBER | 75 | 200 |
※ Internal specifications can be modified upon user’s demand
UL Certified Product
